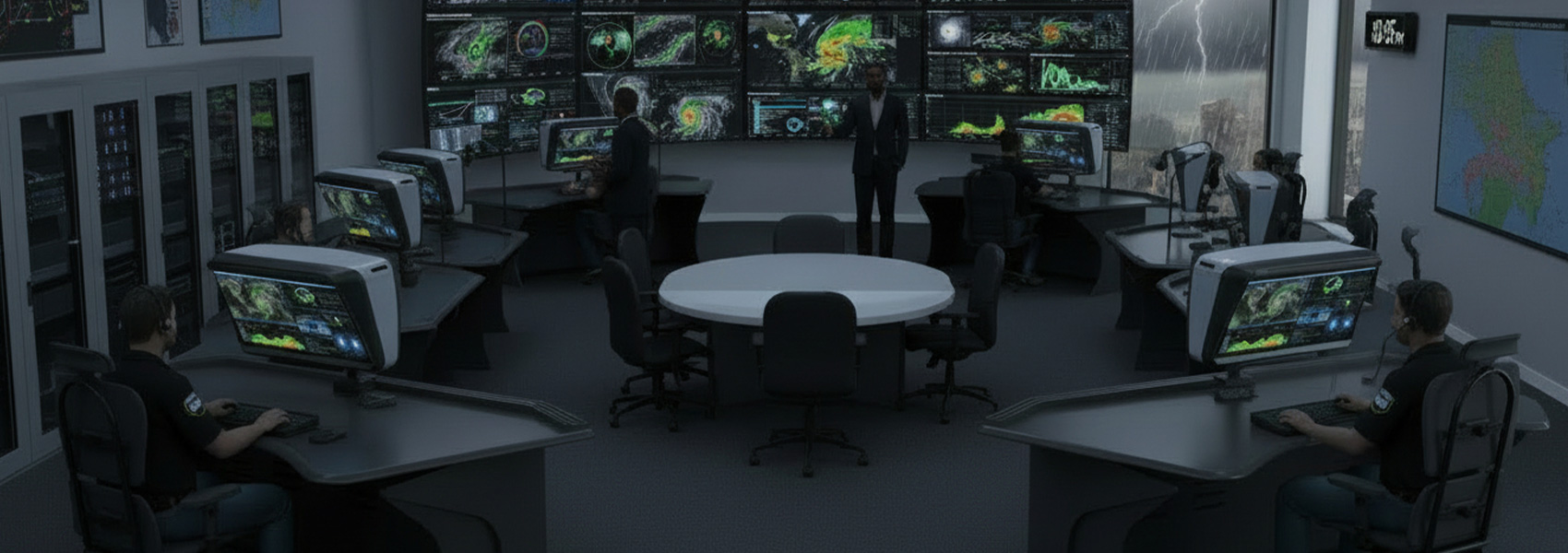

Emergency Operation Center (EOC) Immersive Display & Advanced XR Console Solution
Highest 4K image quality engineered for Emergency Operations Centers, delivering precise, real-time visualization optimized for elevated viewing conditions and extended monitoring while reducing operator eye strain.

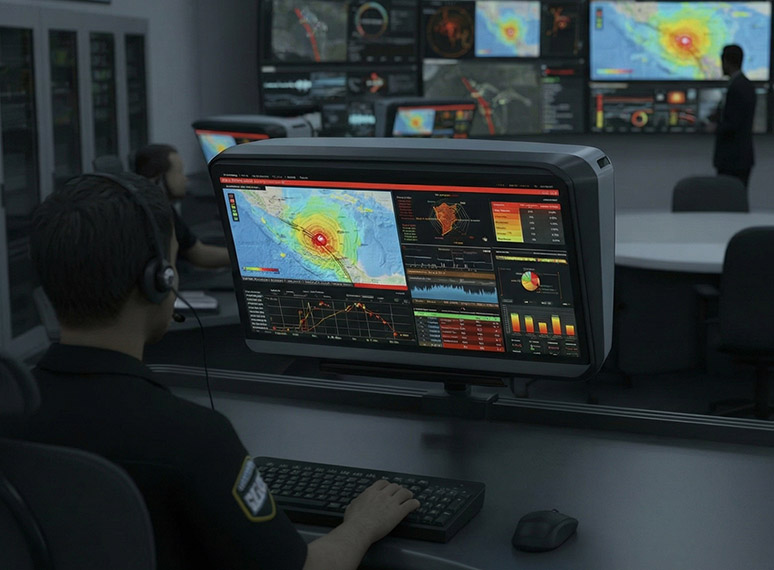

Inracks Delivers a Fully Integrated Console Solution Featuring Brelyon Ultra Reality® XR Displays for Emergency Operations Centers
The Inracks XR Console solution, paired with the Brelyon Ultra Reality® XR monitor, delivers a compact, immersive visualization platform purpose-built for Emergency Operations Centers, enabling mission critical situational awareness and real time data monitoring without the need for traditional video walls.
The Inracks XR Console combined with the Brelyon Ultra Reality® XR display solution is ideal for the following Emergency Operations Center applications:
Government and Public Sector
- State and local Emergency Management Agencies
- County and municipal EOCs
- Public Safety Answering Points and 911 Communications Centers
- Fusion Centers for interagency coordination
- Transportation Authorities and Traffic Management Centers
- Port Authorities and Harbor Operations Centers
- Airport Operations and Command Centers
- Public Utilities Commissions
- Smart City Operations Centers
Critical Infrastructure and Utilities
- Electric Power Grid Operations Centers
- Water and Wastewater Treatment Control Centers
- Natural Gas and Pipeline Operations Centers
- Renewable Energy Monitoring and Dispatch Centers
- Nuclear Power Plant Operations (non medical, non military)
- Telecommunications Network Operations Centers
- Data Center Network Operations Centers
Transportation and Logistics
- Rail Operations and Dispatch Centers
- Mass Transit Control Centers
- Highway Operations and Incident Management Centers
- Fleet Management and Dispatch Centers
- Supply Chain Command and Logistics Control Rooms
- Port and Intermodal Logistics Command Centers
Media and Communications
- Broadcast Network Operations Centers
- Newsroom Command and Coordination Centers
- Emergency Alert and Communications Centers
Real Estate and Facilities
- Large Campus Facilities Operations Centers
- Smart Building Command Centers
- Property Portfolio Operations Centers
Energy, Industrial, and Manufacturing
- Oil and Gas Operations Control Centers
- Refinery and Plant Operations Rooms
- Manufacturing Command and Quality Control Centers
- Industrial Safety and Risk Monitoring Centers
- Chemical Plant Operations Centers
- Mining Operations Control Centers
Corporate and Enterprise Operations
- Corporate Crisis Management Centers
- Business Continuity and Disaster Recovery Command Centers
- Global Security Operations Centers
- Enterprise Risk Management Centers
- Financial Trading Operations Centers
- Global Corporate Network Operations Centers
Environmental and Research Operations
- Weather Monitoring and Forecast Centers
- Climate and Environmental Monitoring Centers
- Wildfire Monitoring and Coordination Centers
- Flood Control and Water Management Centers
- Geological and Seismic Monitoring Centers
Education and Research Institutions
- University Campus Operations Centers
- Research Facility Operations Centers
- Large School District Emergency Coordination Centers
Event and Venue Operations
- Stadium and Arena Command Centers
- Convention Center Operations Centers
- Theme Park and Resort Operations Centers
- Large Event Security and Operations Centers
Inracks XR Console available with Low Profile Slatrail or Slatwall Option
1. Low-Profile Slatrail Option
Modern Horizontal extruded aluminum anodized Black
2. Robust 3-Sided Slatwall Option
Highly Functional Three sided vertical and horizontal slatwall anodized Black
Ergonomic Work Surface
Click on image to magnify
- The Blade console’s work surface is an (HPL) non porous high pressure laminate supported by a steel sub-frame
- Urethane ergonomic edge molding accommodates heavy duty usage (24/7/365) and provides wrist comfort by eliminating contact stress caused by hard/sharp edges
- Work surface is virtually seamless between modules
- Heavy duty frame comprised of powder coated steel frame and extruded aluminum
- Phenolic material available for harsh environmental area’s
Cable Management
Click on image to magnify
- Blade console design includes easy lift-off brushed access panels to access the colored coated steel dual cable management trays
- Install cables/fiber/power cords to and from work surface area (monitors, keyboards, etc)
- Route cables/fiber/power to adjacent console as needed
- Route cables/fiber to CPUs, power distribution units (PDUs), KVMs, etc.
- Access panels provide brush gasket edging to ‘close’ over wires, hold them in place, and provide an organized, professional appearance
- Cable trays designed to meet NIPR/SIPR
Equipment Storage
Click on image to magnify
- Heavy duty perforated steel shelf provides secure storage for CPU towers and miscellaneous electronics
- Lockable easy lift off doors (front and rear)
- 12U rackmount kit included per module
- Vented doors and bottom equipment shelf support proper heat dissipation
- Clear path from shelving to cable management area
- 2 internal MDF panels per module available for mounting patch panels, PDU’s ect
Slatwall-slatrail Organization System
Click on image to magnify
- Extruded aluminum anodized black slatwall or slatrail provides convenient mounting point for accessories
- Frees up worksurface space
Slatwall or slatrail comprises high strength anodized aluminum - Monitor arms can support various flat screen configurations
- Task lights provide additional workstation lighting when and where it is needed
- Slatwall provides for three sided multi-use surface when mounting surface is in high demand
- Slatrail is a Horizontal low profile modern design allowing for increased line of sight requirement
Static or Height Adjustable
Click on image to magnify
- Blade design makes it easy to switch out static support legs for motorized lift legs
- Standard adjustable height lift column with a load capacity of 1200N column.
- Additional lift column options available depending on lift requirement
- Programmable push button control system
Station Controls and Accessories
Click on image to magnify
- The blade console can be configured with a number of custom technology options.
- Environmental controls like temperature, heating/cooling system
- Modern touch controlled LED task lighting
- Wide range of power/data grommet options that can be configured into the work surface.
- Configurable integrated power options
- Phone shelves
- Monitor arms for almost any configuration
Need to request a console rendering?
About the Brelyon Ultra Reality® XR Monitor
Brelyon Ultra Reality Specifications
The Brelyon Ultra Reality is a true XR immersive display monitor displaying massive 122″ field of vision, no VR goggles required.
Resolution – 3840×1440 (4K)
Brightness – 450-700Nits
Contrast Ratio – 1000:1 with ambient light suppression
Refresh Rate – 60Hz
Response Time – 16ms
Color – DCI-P3 98% (CIE1976)
Display Colors – 1.07B
Interface – HDMI 2.1 / DisplayPort 1.4
Image Size – 122”
Field of View – 110°
Depth Profile – 1.4-2.4 meters
Window Size – 30”
Weight – 31 lbs(14 kg)
Power Consumption – 65 Watts
Headset-free immersive computing for training and operations. Bring your content to life with effortless immersion.
About the Inracks Advanced XR Console
Inracks Advanced XR Console Capabilities
Inracks has integrated the Brelyon XR display into its proven control room furniture. The result is an XR console that brings the full experience of a control room AV wall directly to the operator’s desk.
- Mission critical engineered design informed by real world emergency operations centers, including FEMA, 911 dispatch, and municipal command environments
- Extremely robust extruded aluminum and steel frame construction designed for continuous 24/7 emergency response operations
- Durable, customizable end panels and work surfaces manufactured from HPL and polycarbonate to withstand high use, rapid response conditions, and frequent cleaning
- Highly configurable modular architecture allows EOC teams to scale around incident command workflows, room layouts, and evolving technology requirements
- Designed to support public safety IT infrastructure, secure networks, and compliance requirements for government and emergency communications systems
- Optional motorized height adjustable work surface to support ergonomic operator comfort during extended shifts and critical events
- Designed for stationary or mobile FEMA, 911, and municipal emergency operations console deployments
Mount the Brelyon Ultra Reality® monitor to any Blade, Blade Sit-Stand, Edge, Edge Sit-Stand or Enterprise console for maximum operator performance.
Inracks XR Console Features
- Work surface is 1-1/4” thick high pressure laminated MDF with bonded MT comfort edge nosing
- Module widths include: 36”, 48”, 60”, 72” forward and reverse corner modules: 22.5, 45, 90 degree
- Designed to utilize monitor arms to position displays vertically and horizontally for positive operator line of sight comfort
- MT6 ergonomic comfort edge nosing is extremely durable, impact and puncture resistant, permanently bonded seams, anti-bacterial and anti-fungal. UV resistant material, LEED credit certified
- End panels shall be 1 1/4 ” thickness high pressure laminated MDF with 1mm PVC edging with a 3/8” black acrylic inset.
- Black & red color coated cable trays shall be constructed from 6 gage powder coated wire. Cable tray design meets NIPR/SIPR security protocols.
- Vertical legs made from 14 gauge powder coated cold rolled steel with a sub-frame structure made from black powder coated 14 ga C.r.s
- Perforated bottom CPU shelf with cable entry points made from 14 gage powder coated cold rolled steel and allows for air circulation thru out equipment storage internal frame.
- Standard modules to include up to 12U of 19 Inch rackmount capability
- Ventilated front and rear doors lift off for easy access to internal equipment storage area. Doors constructed of ¾ high pressure laminate with MDF cores with built-in lock ability.
- (2) Internal MDF mounting surfaces under cabinet for power distribution units & patch panels
- Easy lift off infill panels integrated with the work surface allow for easy access to cable trays from above. Brushes in the lift off panels create a space to route wire and cables while also preventing pencils, etc from falling into the cabinet.
- Almost indestructible low profile horizontal slatrail or three sided vertical/horizontal slatwall made from extruded anodized aluminum designed to accept monitor arms, task lights and accessories
- Product meets all ANSI BIFMA X5.5 safety and performance product standards
Looking for a more robust console setup? View the Summit Enterprise line command consoles >
